So which do you need: a straight tube or a pre-stressed tube?
Our answer to that question is another question:
Source: Google images
That’s right – both can be accomplished with straighteners.
The tube, pipe and wire industries all utilize straighteners both in-line and off-line with regard to the main manufacturing process. Straightening these products involve “stressing” the tube in a particular plane(s) to counter-act forming, internal material, or welding heat stresses. All of which can be removed or balanced by using straighteners.
Fig 1: Multi-roll straightener or stressing unit (prior to wire forming)
There are many types of straighteners used in today’s manufacturing environment: multi-roll or multi-plane, Turkshead, and cross-roll. Cross-roll straighteners tend to be used as an off-line processing action, since the tube or pipe is typically cut to a finite length and the tube or pipe is rolling radially as it is processed. Turkshead straighteners are used on tube and pipe mills in-line and use either 2 or 4 roll designs to encompass the tube and impart a force (or stress) in up to 2-axis of direction. Multi-roll or multi-plane straighteners, as shown in Figure 1 above, tend to be used to counteract forces within a tube, pipe or wire that are variable and multi-direction as the product moves through the straightener.
Turkshead straighteners involve an operator to adjust the unit to counteract the internal stresses, but as these stresses change, the Turkshead must also be changed. This is not entirely true with a multi-roll or multi-plane straightener. This unit is more robust to small changes as it stresses the tube multiple times to achieve straightness. In essence, you “beat” the product up to achieve your desired goals. More rolls can be added to reach a point where an operator is not required for all but the most stubborn material characteristics.

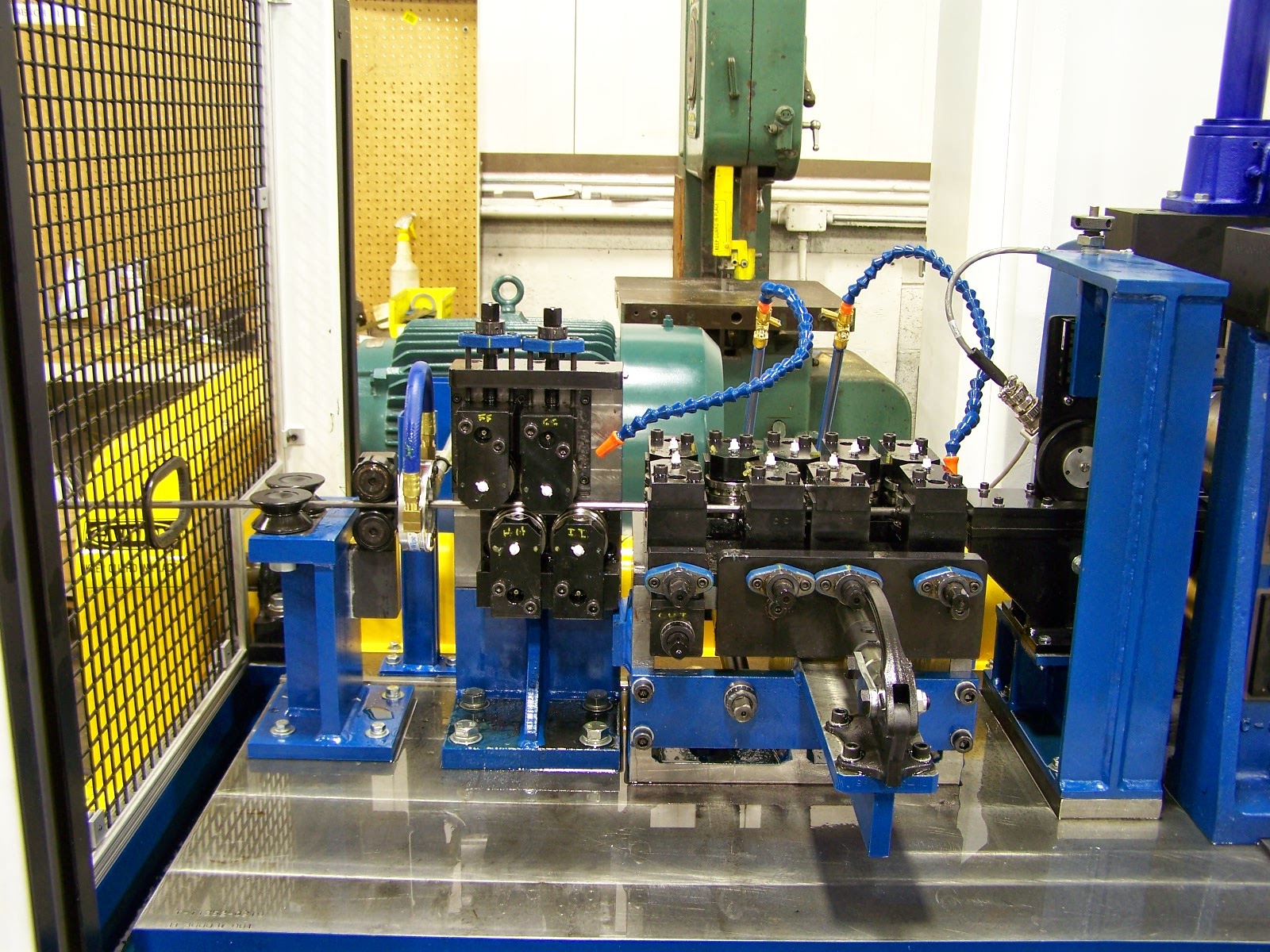

Fig 2: Multi-roll straightener or stressing unit (post wire forming)
Straighteners can be used before special forming units or after them, depending on the specific manufacturing method.
These units have been recently used in specialty applications where manufacturers want to “raise the level of work hardening” within their product without adding specialty heat treat processes or specialty materials. Since these straightening devices work by imparting stresses to counter-act already present stresses, they are a viable choice to add percentage points to the work hardness of a product without imposing other damage, like ovality changes. Too much straightening can damage the OD characteristics of a tube, pipe, or wire, so you must always monitor for side effects that prevent you from achieving the highest level of quality within a process.
Find more information on roll tooling applications on our aptly named Roll Tooling page, or browse our machines specifically for applications in the Tube and Pipe industry.
